Dimensions of Features - An Example

Tags: continuous delivery, planning,

In this next post in our series on Dimensional Planning, we will share how we applied Dimensional Planning to the Online Agile Fluency® Diagnostic application we have been working on since spring.

Going remote

Agile Fluency diagnostic workshops were originally designed as face to face workshops where participants individually fill in a questionnaire and then create a shared, aggregated view of their answers.

In March, about a week after the lock down started, we had to run our first diagnostic workshop remotely. We build something quickly with Google Forms and Sheets, which worked ok-ish. Because we were to run many more workshops over the months to come and because we thought “hey we are software developers, we can build something cool ourselves!”, we embarked on a journey to develop a web based application to support these workshops.

Dirt Road Products & Features

We had quite tight time constraints for delivering a first usable version. We had scheduled two diagnostic workshops by the end of April, which meant we had about 6 weeks, with limited time available because of other projects.

The application needed at least something for filling in the questionnaire and visualizing aggregated results. After Rob had made a start with the questionnaire, we defined our Dirt Road version of the tool, with the following key features:

Questionnaires accessible through unique links so that participants can remain anonymous and do not need to create an account
Rollup views the aggregated questionnaire results that we share with the participants

But we also needed:

Authentication The application should be publicly accessible for participants, so some security measurements should be in place.
Operability We wanted to deploy the application to AWS.

We left out the following features:

User management Being the only users for now, we decided on the Dirt Road solution of hard-coding ourselves in the back-end.
Send workshop invitations We started with manually copying & emailing joining links.
Styling & branding We applied some styling but kept it as simple as possible.
User experience We put some effort in the questionnaire, but as the rest of the application was only used by us (expert users), we kept error handling simple with some rough edges. We tolerated some edge cases and dead ends in the application.

For the features that we did include, we also tried to scale down the dimensions:

Authentication Cobblestone Login with username and password, provide password reset functionality for better security. To enable password resets, we decided to build email integration as well. Looking back, we could have reduced some effort here, but hey, test-driving SMTP integration is quite fun!
Diagnostic session management Dirt Road We built the minimum required for running workshops: create a session, list all sessions, get joining links for participants. We did not add access control, so all users could see all sessions.
Questionnaires Cobblestone We wanted to give workshop participants a good questionnaire experience, so scaling down to Dirt Road would risk confusing or even putting off participants.
Rollup views - visualization Cobblestone We decided to put in some effort in visualizing aggregated workshop results in a nice table with coloured dots, because this visualization needs to be clear for participants.
Rollup views - gathering consensus Dirt Road Marking consensus visually was a CSS no-brainer, but we don’t record it. Instead we record results by hand or by screenshot.
Operability Cobblestone Running the application on our local machines was not an option. We chose to deploy to AWS and operate it in a secure way. Instead of configuring everything manually, we coded our infrastructure in Terraform. We expect this will pay off in time and reduced stress later on. For deploying our Docker containers we could largely reuse an existing deployment tool we had developed for a different project.

We did not build an automated CI/CD pipeline. We did create build scripts that do the heavy lifting like running tests and creating Docker images, but the release process and versioning is still manual, which is still good enough today. Continuous Integration and Delivery is an activity, not a tool.

Based on these product decisions, we managed to deliver just in time an application that was good enough to run the two scheduled diagnostic workshops. The facilitator’s dashboard looked like shown below. The joining links are very primitive relative URLs:

AFP facilitator's dashboard April 2020

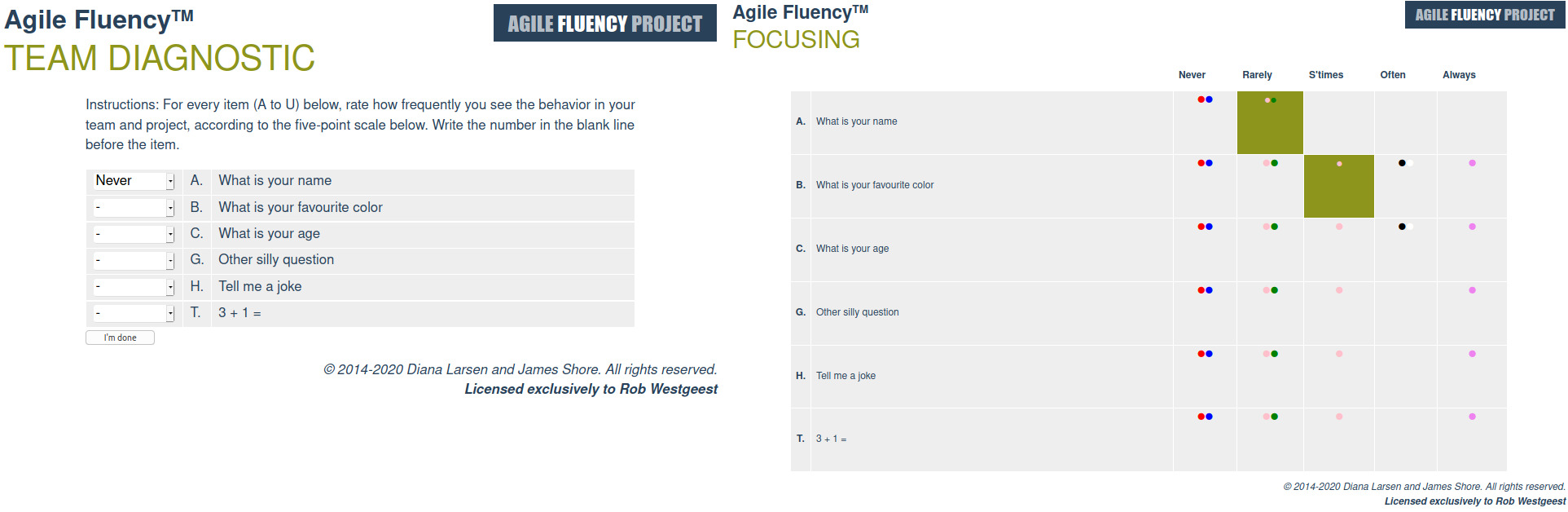

The questionnaire and rollup view looked like this, showing bogus test questions from our fake back-end server:

AFP facilitator's dashboard April 2020

Simple is hard

Developing a Dirt Road is harder than it seems: playing the what can we leave out game is quite difficult. We could have left more things out while still being able to run the two workshops, but there is often a plausible reason to “just do this feature as well”. It is a matter of trade-offs and judgment.

The questionnaire and rollup view needed to be good enough for workshop participants to focus on the content and not to be distracted by the application’s rough edges. For some things we thought “how hard can it be! Let’s just build it”, which sometimes turned out to harder than we assumed. And then we’d suffer from the sunk cost fallacy and decide to finish it anyway.

When your software touches reality

Initially we were not in contact with any real other users apart from ourselves, so we made a lot of assumptions. We cannot foresee everything, so we need to put software in the hands of users, sooner rather than later, and then observe how they use it. This will provide way better information on what is ‘good enough’ and where your product is still lacking.

In the course of those 6 weeks, we thought of many more possible features, some necessary, some quite cool. We parked them on our Miro board under ‘Cobblestone Road’ and ‘Highway’. After the first release, we discussed the application with Jim Shore and Diana Larsen from the Agile Fluency Project. This provided again useful feedback on our assumptions and made some features disappear from the board. If we would have ‘just built it all’ at the start, we would have wasted time.

On to the Cobblestone Road

We decided to develop the application further and make it available for the community of facilitators. This meant more features and less Dirt Road-ness. We needed to make the application good enough to hand over user management to the Agile Fluency Project and to serve a wider audience of facilitators. We decided on the following features:

Facilitator management ability to add new facilitators and see all who have access to the application; introduce an ‘administrator’ role
Access control facilitators can only see their own sessions
Recording rollup results the current Dirt Road solution was too error prone for use by others, so we needed to implement proper storing/retrieving of results
Automated backups necessary for disaster recovery, because there will be more and more valuable data in the system
Agile Fluency Project branding to make it an integrated experience for facilitators

We decided to postpone the following things:

Update facilitators Getting facilitators on board was the first priority, we can add updating later.
Facilitator license expiry We assumed that in the short term not many licenses would expire.
Questionnaire internationalization I18N would be pretty cool, but we regarded it initially as a nice to have. We did pick it up quite soon however. We knew some facilitators had translated the questionnaire and we found multi language support an interesting challenge - “how hard can it be?” Well, not that hard, but it took more effort than we initially assumed ;)

Currently, the application looks like this:

diagnostic tool current view

And the Highway?

Once we got the Dirt Road out and we started working on Cobblestone features, more and more possible features were popping up. The Dirt Road version was about reducing to the bare essentials - do we really really need this? This takes some discipline, having tight time constraints helps in making better decisions, like we wrote earlier. Once you are on the Cobblestone Road, you get more and more user feedback and the game tends to change.

A benefit of having a Highway version somewhere on the horizon, is that we can park our shiny features and wild ideas there. Some will turn out to be Cobblestone, others will be worth the extra investment. Quite a few will stay parked there. Because they are now out of our heads, we can focus on valuable work.

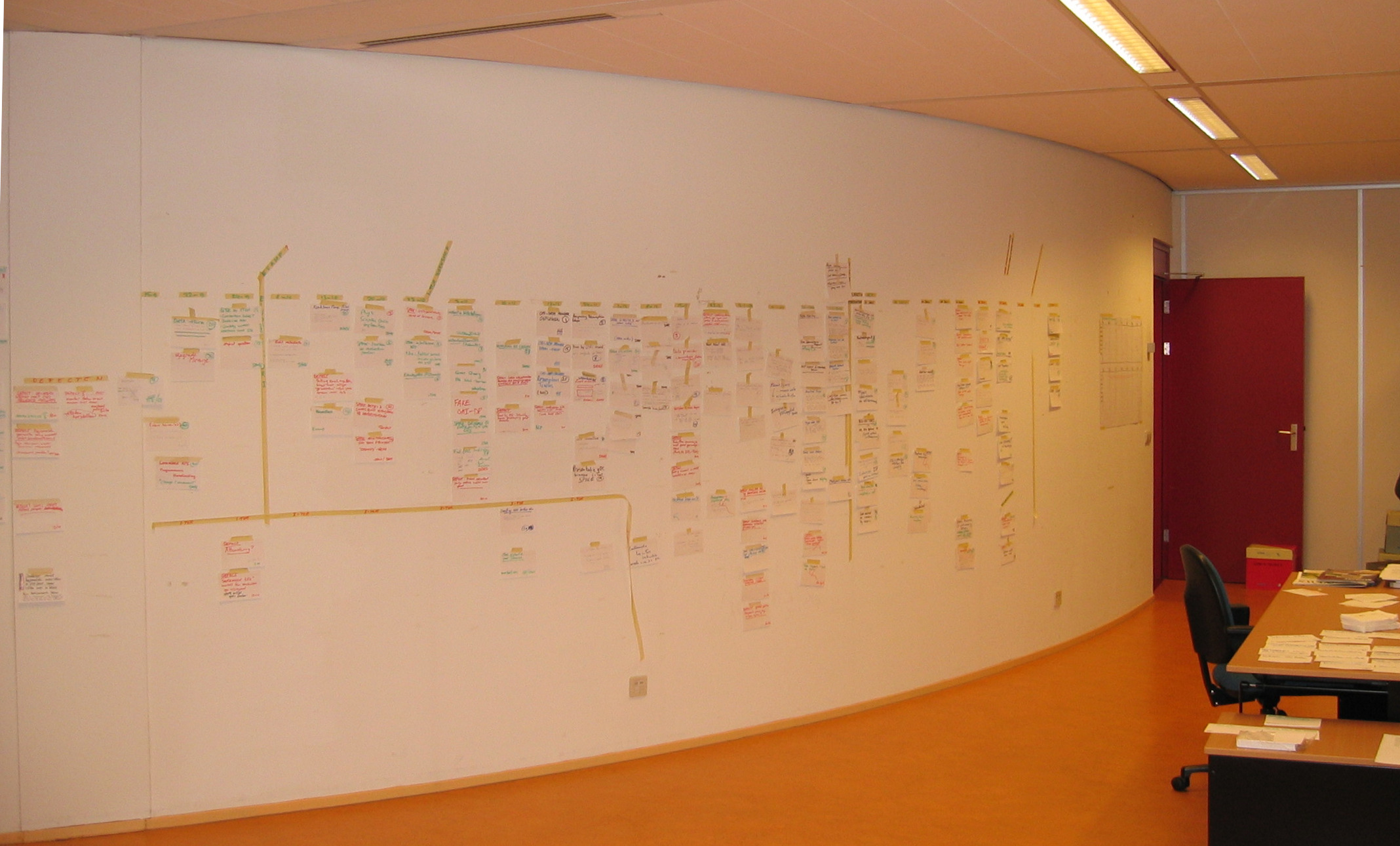

It is a bit like in the old days when we put our user stories on index cards taped to the wall. We’d create a place for the shiny stories that our customers found “very important”. Some of those never got prioritized and kept hanging there until they’d fall of the wall like leaves in autumn. We’d put the fallen cards in a box but no one ever asked about them. By putting those things on the wall, even though we suspected they’d never get prioritized, our customers felt heard and understood it was a matter of trade-offs whether these stories would get priority or not. In one of our early XP projects, we had a nice round wall for the story cards, giving the impression of future stories disappearing:

story wall

Reflecting on what we did

We used the principles of Dimensional Planning and its guiding questions ‘what can we leave out’ and ‘what is good enough’ to deliver working software for a fixed deadline with a limited time budget. We made our product trade-offs using the metaphor.

We did not strictly follow the Dirt Road, Cobblestone Road, Highway dimensions. So did we apply Dimensional Planning wrong then? No, Dimensional Planning is not a method, it is not a recipe you follow to get a good result. It is a metaphor with some guiding questions that helps you in making decisions and communicating the why of your decisions.

Taking a complex systems perspective, Dimensional Planning is a form of scaffolding. It creates a context for making better product decisions, where you can decide to keep the scaffolding in place - i.e. keep using the metaphor - or stop using it after the first releases, like we have done after the doing the first release and discussing new release objectives with the Agile Fluency Project.

Scaffolding is a novel concept from the field of complex systems and sense-making. In organizations, we often focus on rigid things like procedures, processes, methods. Scaffolding provides a more flexible concept for making good stuff emerge.
As Toby Sinclair puts it in his post on 12 Organisational Design Principles that Embrace Complexity: “Organisational Scaffolding is a structure, often temporary that can be used to help the emergence of desired outcomes. Scaffolding helps create the right conditions.”
Many agile practices like daily stand-ups and Scrum sprints, turn out to beneficial within a context!. They are not rigid methods that guarantee success, but they are also forms of scaffolding. They help desired behaviour emerge.

References

More on scaffolding: Sonja Blignaut, Learnings from Whistler: Scaffolding emergence

We have started to make some of the Python backend code we developed available as the Quiltz Open Source libraries. It includes our test driven implementation of an SMTP based email sending library - quiltz-messaging. It is still in an early stage, but feel free to contact us if you’re interested!

Credits: thanks to Willem for editing and helping improve this post.
