In the previous posts, we introduced the Connascence model as a model of coupling and elaborated on the two most explicit forms of connascence: name and type. In this post, we will discuss Connascence by Meaning, which is as much about cohesion as it is about coupling.
Connascence defines three dimensions of coupling: strength, degree and distance, as the picture below shows.
Connascence by Meaning
Connascence by Meaning means that multiple elements must agree on the meaning of particular values. This is also known as Connascence by Convention.
An example of Connascence by Meaning is the use of integers to represent monetary amounts. Code that uses those integers must know how to interpret the values. Is it Euro cents or whole Euros? Euros or Dollars? Is the value allowed to be negative? What operations are valid on these numbers? We can add monetary amounts, we can multiply a monetary amount by a scalar value, but it does not make sense to multiply two monetary amounts.
The code below shows another example. Apparently the return value null of function validateAndConvert means invalid data. The calling code depends on the meaning that validateAndConvert assigns to null.
1
2
person = validateAndConvert(data)
if (person == null) throw new InvalidDataException();
Other examples:
- using integers to represent port numbers; port numbers should be in the range from 0 to 65535 with 0-1023 being system ports;
- using strings to represent email addresses; valid values are defined by RFCs 5322 and 6854;
- using strings to represent international phone numbers;
- returning
null,NoneorOptional.emptyto signal no results found, or some exceptional situation - what does thenullorNonevalue actually mean?
Different elements need to know what these numbers and text values mean, how to use them, and what valid and invalid values are.
We will always have Connascence by Meaning somewhere in our code. We use primitives to build higher order concepts and encode assumptions about how these concepts are represented using strings or integers. So Connascence by Meaning is not bad.

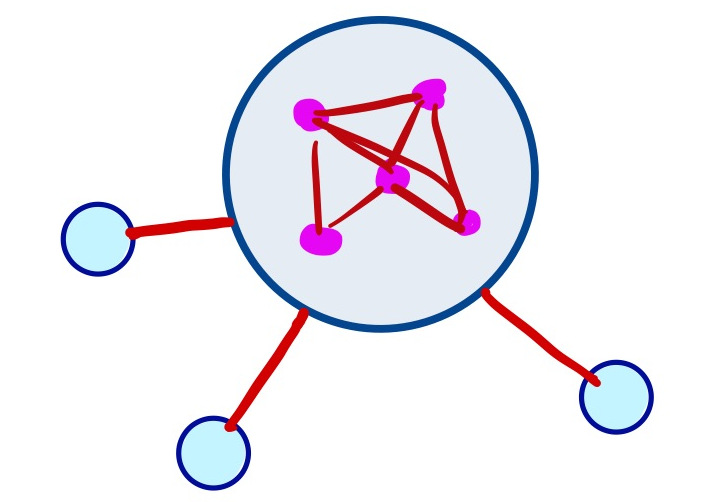

We do like to have all assumptions about meaning explicit and close to each other. We can refactor so that all assumptions are encapsulated in an abstraction, hidden behind a type or interface. The implementation details of the abstraction will be tightly coupled - it is highly cohesive, like the picture below shows. Other code will be coupled to the abstraction (Connascence by Name and Type) and not to specific primitives or assumptions about meaning.
Refactoring Connascence by Meaning
Managing Connascence by Meaning is what we do on a daily basis. We introduce highly cohesive abstractions and reduce coupling in the rest of the code. Some code smells that are indicators of Connascence by Meaning are Primitive Obsession, Magic Numbers, and Feature Envy.
Primitive obsession is code that uses primitive types all over the place. Usually this means hidden concepts, which can be extracted by encapsulating the primitives and moving the behaviour to the new abstraction.
Magic Numbers means using special literal values that have an implicit meaning. This includes the use of null values. We can refactor this to Connascence by Name or Type, by extracting a constant or introducing an exception as the code fragment below shows.
1
2
3
4
5
6
7
8
9
10
11
12
Person validateAndConvert(data) throws InvalidDataException {
if (isInvalid(data) then
throw new InvalidDataException();
...
return person;
}
...
try {
person = validateAndConvert(data)
} catch (InvalidDataException invalid) {
...
}
The next code fragment shows another example of code with Magic Numbers. It is not clear what 0, 1, 2, and 0x00 mean. Do the different zeroes actually mean the same thing?
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
public class VehicleMessageDecoder : MessageDecoder
{
public void handleMessage(byte identification, byte[] message, int length)
{
switch (decodingState) {
case 0:
decodingState = 1;
goto case 1;
case 1:
if (message[0] == 0x00) {
currentEntry.setTimestamp(CodecUtils.decodeInt32(message, 4));
// ...
decodingState = 2;
numberOfDeltas = 0;
}
break;
//...
}
}
}
If we refactor to Connascence by Name, it becomes more clear what parts need to change together. The different meanings of the zeroes also becomes clear.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
public class VehicleMessageDecoder : MessageDecoder
{
public void handleMessage(byte identification, byte[] message, int length)
{
switch (decodingState) {
case STARTING:
decodingState = WAITING_FOR_INITIALFRAME;
goto case WAITING_FOR_INITIALFRAME;
case WAITING_FOR_INITIALFRAME:
if (message[Protocol.FrameTypeIndex] == Protocol.FullFrame) {
currentEntry.setTimestamp(CodecUtils.decodeInt32(message, 4));
// ...
decodingState = WAITING_FOR_DELTAS;
numberOfDeltas = 0;
}
break;
//...
}
}
}
Let’s look at another example. The code below shows a piece of shopping cart logic. It computes the total including taxes using Money and Item data classes. The shopping cart code has intimate knowledge about how money works: it knows how to add amounts and how to apply tax rates.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
data class Money(val amount: BigDecimal)
data class Item(val name: String, val price: Money)
class ShoppingCart {
...
fun calculateTotalWithTax(taxRate: BigDecimal): Money {
var totalAmount = BigDecimal.ZERO
for (item in items) {
totalAmount = totalAmount.add(item.price.amount)
}
val taxMultiplier = BigDecimal.ONE.add(taxRate)
val finalAmount = totalAmount.multiply(taxMultiplier)
return Money(finalAmount)
}
}
We can refactor this by extracting add and withTax functions and moving these to Money, so that Money encapsulates the meaning of the BigDecimal values.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
data class Money(val amount: BigDecimal = BigDecimal.ZERO) {
fun add(other: Money): Money = Money(amount.add(other.amount))
fun withTax(taxRate: BigDecimal): Money {
val taxMultiplier = BigDecimal.ONE.add(taxRate)
return Money(amount.multiply(taxMultiplier))
}
}
data class Item(val name: String, val price: Money)
class ShoppingCart {
...
fun calculateTotalWithTax(taxRate: BigDecimal): Money {
var totalAmount = Money()
for (item in items) {
totalAmount = totalAmount.add(item.price)
}
return totalAmount.withTax(taxRate)
}
}
What’s next
This post is part of a series on connascence and coupling. In the next post, we will focus on Connascence by Position, where two elements need to agree on the order of values.
